PRODUCTS

Cycloidal Solutions

SPINEA TwinSpin® and DriveSpin® high precision cycloidal gears exceed the requirements for even the most demanding customers across a variety of robotic and automation applications. Designed for optimal performance and weight reduction, the TwinSpin® and DriveSpin® Series provide precise motion and high tilting and torsional stiffness, in a compact, lightweight design.

products-subcategory

Ready to start?
DOWNLOADS +
CONFIGURATOR

Know what you need?
REQUEST A
QUOTE

Cycloidal Gearing Solutions



TwinSpin® and DriveSpin® cycloidal gears are designed for high precision, torque density and weight reduction. These cycloidal gearboxes are ideal for robotics and positioning applications.

The TwinSpin® G & GH series of gear reducers provide high tilting stiffness, low friction, and high torque overload capacity with a high precision output bearing.

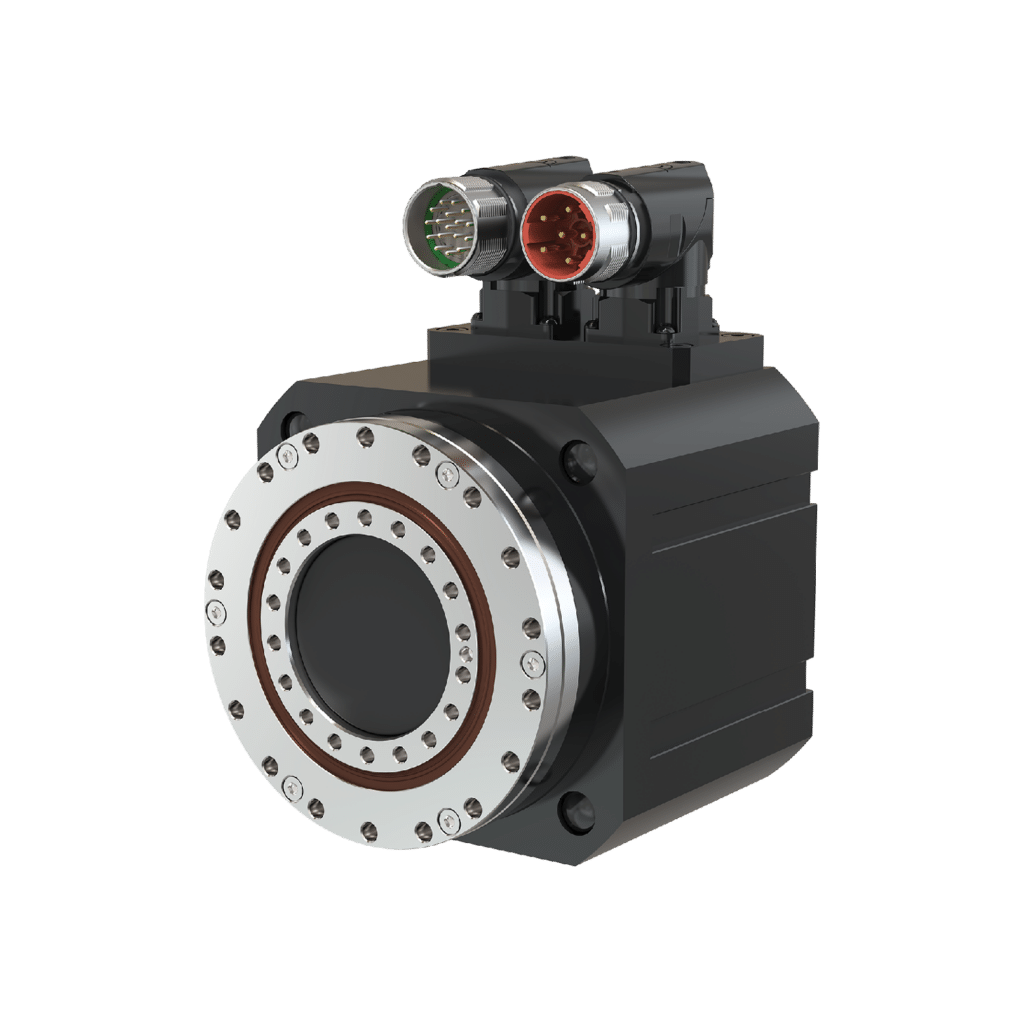

In addition the DriveSpin® DS & DSH series of rotary actuators provide rotary motion and transfer output torque with high radial-axial load capacity.



Watch the SPINEA TwinSpin® and DriveSpin® functional principle video now!





Product Range
  • G Series TwinSpin®
  • GH Series TwinSpin®
  • DS Series DriveSpin®
  • DSH Series DriveSpin®



Spinea Cycloidal Gears - FAQ's

What levels of precision are offered by product?

Zero backlash units are designed for cyclic (non-continuous) positioning applications.  Ratios below 20:1 are not suggested.  Long duty cycle applications can cause excessive gearbox heat and wear.  The motor horsepower required for a zero backlash design is higher than that of a standard design gearset

Will Cone Drive design a customized solution for my application?

Yes - Talk to a Customer Service Representative (CSR):

orders@conedrive.com

1-888-994-2663 (toll free)

1-231-946-8410 (International)

What is double-enveloping gearing and what is the performance advantage?

Cone Drive’s double enveloping worm gear has an hourglass shape and the gear is machined with unique contours to ensure maximum contact between the components.  This added contact creates a high torque capacity, high durability worm gear.  Cone Drive's worm gear design provides you a higher load capacity, lower contact stress, and greater shock capacity.  These improved ratings offer you the flexibility to downsize the gearbox to save space or increase the motor to get more power

PRODUCT DEVELOPMENT

The Cone Drive Product Development Laboratory is a state-of-the-art facility directly adjacent to our Traverse City, Michigan manufacturing location. The lab has the capacity to test a wide range of gear reducer products, for both Cone Drive products as well as those manufactured by other companies. The lab includes capability to run a wide variety of tests including load testing for evaluating reducer performance and operating efficiency.
  • ico-testcontrol
    Test + Control
    • 6 product testing stands
    • Servo cyclic control
    • Simulated inertial loading
    • Constant torque/load
    • Durability/validation
    • Accelerated life test
    • Lubricant evaluation
    • Static loading & stiffness
  • ico-productmeasurement
    Product Measurement
    • Displacement & motion
    • Torque
    • Thermal
    • Efficiency
    • Vibration
    • Basic noise
    • Transmission accuracy
  •
