Absolute Position Magnetic Encoders
Reliable Performance, Every Time
Timken® absolute position magnetic encoders deliver high-resolution, reliable position data—even in the most demanding environments.
Engineered with advanced features, they offer significant operational and cost advantages over conventional technologies
Key Features
- High-resolution magnetic encoders
- Environmentally robust
- Compact, reliable, and cost-effective design
- 3x larger air gap than competitors
- Easy installation with configurable, customizable options
- Dual/quad sensor options for improved mounting flexibility
- Fast lead times and expert engineering support
ABSOLUTE POSITION MAGNETIC ENCODERS SPECIFICATIONS
- Resolution: 16 – 22 bit, optional 16 bit turns counter

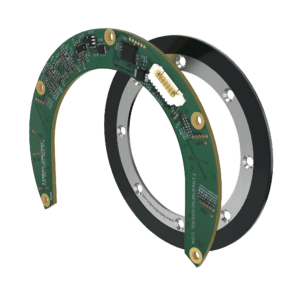

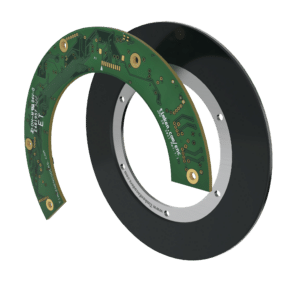

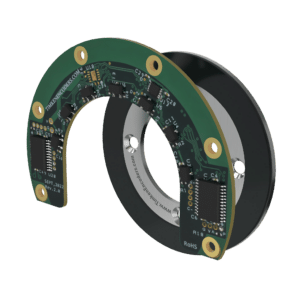

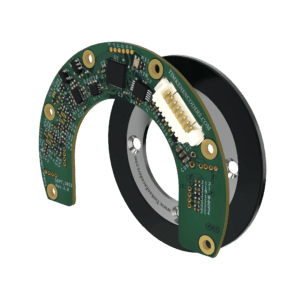

- Standard Sizes: 39mm, 49mm, 80mm, 100mm, and 225mm
- Standard Bore Sizes: 23 – 93 mm
- Maximum RPM: Up to 5,000 RPM
- Operating Temperature: -40º to 85º C, options to 105º C
- Absolute Output: SPI/SSI, BiSS-C
