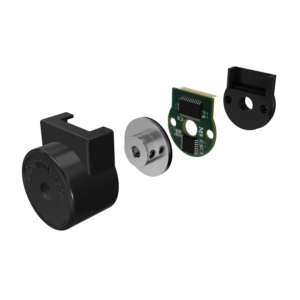

Modular Magnetic Encoders
Industry Appeal
Timken® modular magnetic encoders offer high-resolution, reliable performance across a wide range of industries and applications. Engineered for durability, they deliver accurate speed and position data—even in demanding environments—while providing clear operational and cost advantages over traditional sensing technologies.
Key Features
- High-resolution magnetic encoders
- Environmentally robust
- Bearingless, non-contact design
- Reliable, compact, and cost-effective
- Incremental, quadrature, and index output
- Easy installation with customizable options
- Fast lead times and expert engineering support
MODULAR MAGNETIC ENCODERS SPECIFICATIONS
- Resolution: 100 – 8192 PPR
- Standard Sizes: 0.9”, 1.1” and 1.5” (21.6, 30.25 and 41 mm ODs)
- Standard Bore Sizes: 1/8” – 1/2”, 5 – 13 mm
- Maximum RPM: 10,000+ RPM
- Operating Temperature: -40º to 85º C, options to 125º C
- Commutation (UVW): 0 – 20 pole
- Incremental Output (ABZ): Open Collector, Line Driver
- Absolute Output: SPI/SSI, BiSS-C
- Termination: 8 and 15 pin connectors standard
- Enclosure Rating: NEMA 1/IP40
